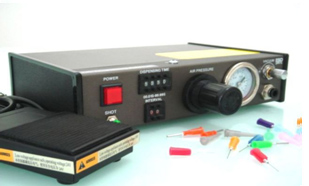

| Digital timed air dispenser plus the function of cycle dispensing |
|
| |
|
|
| Material include adhesive, glue, silicone, RTV, cyanoacrylate, grease, anaerobic and |
| UV cure resins etc. |
|
|
Features
| • Manual or timer operation mode |
|
|
|
|
| • Foot pedal controlled |
|
|
|
|
| •Suck-back feature ensure no dripping |
|
|
|
| •Fast dispense speed at 600 cycles/min |
|
|
|
| •Complete with an accessory dispensing kit |
|
|
|
| •Timer mode dispensing time : 0.01-99.99 seconds |
|
|
|
| •At manual mode, materials could be dispensed continuously until the operator release foot pedal |
Specifications
| Size : |
23.5 x 20.5 x 6.3 cm |
| Timer mode dispensing time : |
0.01-99.99 seconds |
| Timer mode cycle interval : |
0.1-9.9 seconds |
| Manual mode dispensing time : |
Controlled by the foot pedal |
| Input voltage : |
220V / 110V |
| Internal voltage : |
24VDC |
| Air input : |
70-100 psi |
| Air output : |
1-100 psi |
| Weight : |
3 kg |
|
 |
Accessories
| Description |
Qty |
| 30CC Barrel Adapter Assembly |
1pc |
| 30CC Barrel |
3pcs |
| 30CC PE Piston |
3pcs |
| 15 GA Blunt End Tip |
5pcs |
| 20 GA Blunt End Tip |
5pcs |
| 22 GA Blunt End Tip |
5pcs |
| 25 GA Blunt End Tip |
5pcs |
| 16A Tapered Tip |
5pcs |
| 20A Tapered Tip |
5pcs |
| Barrel Stand |
1pc |
| Foot Pedal |
1pc |
| Air Hose |
1pc |
| Power cord |
1pc |
|
 |
|
