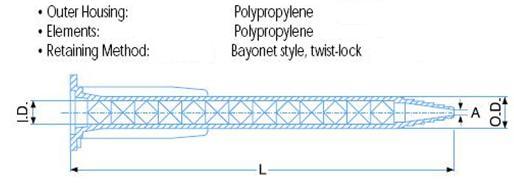

MA-Series Part No              I.D. (mm)   O.D. (mm) L (mm)      Dia A (mm) Elements  Volume (ml) MA3.0-07-S 3 4.6 33.2 1.0 7 0.19 MA3.0-13-S 3 4.6 50.6 1.0 13 0.29 MA3.0-17-S 3 4.6 62.2 1.0 17 0.34 MA4.0-13-S 4 5.8 66.0 2.0 13 0.6 MA4.0-17-S 4 5.8 81.6 2.0 17 0.75 MA5.4-07-S 5.4 7.0 55.7 1.5 7 0.78 MA5.4-13-S 5.4 7.0 84.6 1.5 13 1.36 MA5.4-17-S 5.4 7.6 103.6 1.5 17 1.68 MA5.4-21-S 5.4 7.6 124 1.5 21 2.01 MA6.3-12-S 6.35 8.7 97 1. 12 2.08 MA6.3-17-S 6.35 8.7 128 1.5 17 2.92 MA6.3-21-L 6.35 8.7 151.5 1.6 21 3.33 MA6.3-21-S 6.35 8.7 153 1.5 21 3.57 MA6.8-12-I 6.8 8.6 87.5 4.9 12 2.24
